Designed to simplify installation while maintaining a clean, factory-style finish.

Whether replacing damaged wiring, purchasing components separately, or building your own custom setup, these harnesses provide a clean and reliable integration solution.

2 Harness Options Available

WH-AP-01 — Full JL Designs Plug & Play Harness

Designed for complete JL Designs systems.

This version allows both the JL Designs integrated taillight and JL Designs fender eliminator to plug directly into the harness using weather-protected bullet connectors for a fully plug-and-play installation.

Best For:

• JL Designs Integrated Taillight

• JL Designs Fender Eliminator

• JL Designs Stealth Pack systems

WH-AP-02 — Custom Eliminator / Open-End Harness

Designed for riders using a custom or non-JL Designs eliminator kit while still wanting a clean plug-and-play integration solution.

This version retains the integrated signal connections for JL Designs taillights but leaves the license plate light power leads open-ended so they can be connected to an existing or custom plate light setup.

Best For:

• Existing eliminator kits

• Custom license plate brackets

• Custom plate light configurations

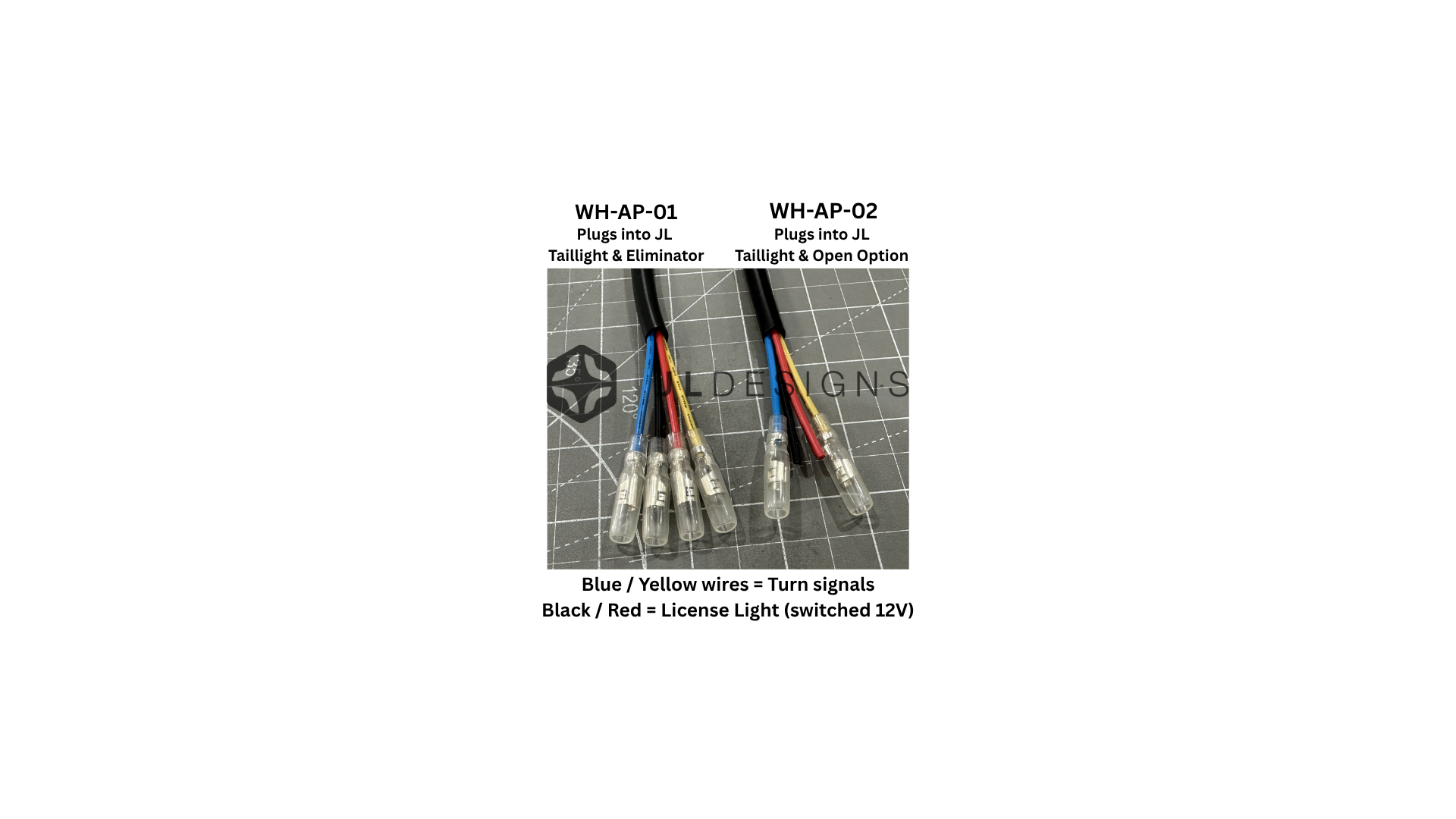

Connection Layout

The factory-side connector plugs directly into the motorcycle’s OEM harness.

Integrated weather-protected female bullet connectors provide direct connection points for compatible JL Designs components.

Wire Functions:

• Blue / Yellow wires = Integrated turn signal connections

• Black / Red wires = License plate light power (switched 12V)

Designed Around Real Installation Experience

Years of real-world installation experience influenced the layout and design of these harnesses.

The goal:

• Cleaner installs

• Reduced wiring clutter

• Easier integration

• OEM-style appearance

No cutting into your motorcycle’s factory harness.

Quality Components

• Weather-protected connectors

• Compact wiring layout

• Durable sleeving

• Precision-crimped terminals

• Designed specifically around JL Designs systems

Features

• True plug-and-play design

• No wire cutting or splicing required

• Clean OEM-style integration

• Simplifies taillight and eliminator installation

• Compact, streamlined wiring layout

Fitment

Compatible with:

• Aprilia RS660 (2021–2026)

• Aprilia Tuono 660 (2021–2026)

• Aprilia RSV4 (2021–2024)

• Aprilia Tuono 1100 (2021–2024)

Important Notes

• Designed specifically for JL Designs lighting products

• WH-AP-02 is intended for custom or existing eliminator kits

• License plate light leads on WH-AP-02 are intentionally left open-ended

• Professional installation recommended if unfamiliar with motorcycle wiring
